The three main types of solar power systems

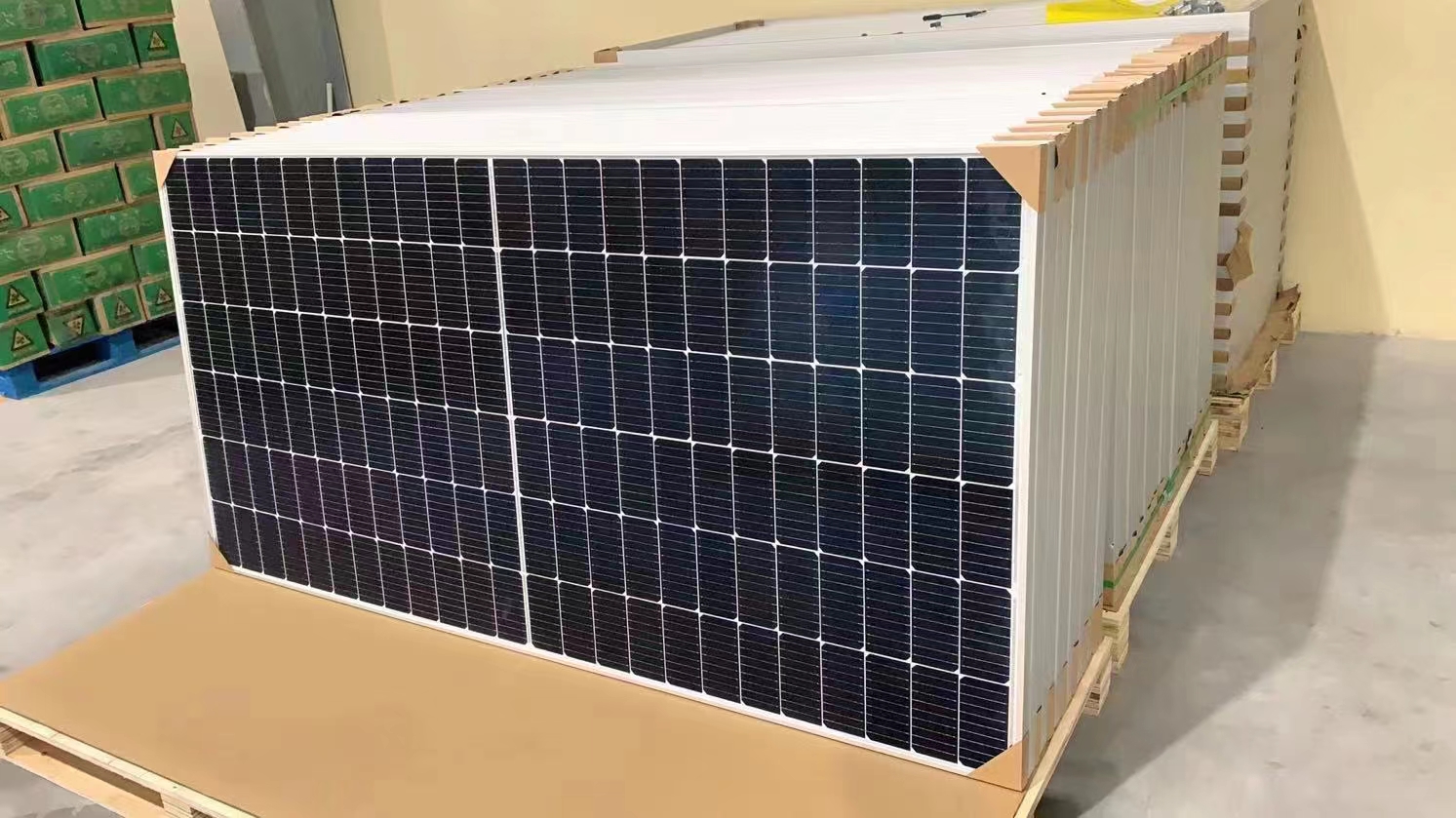

Most modern solar panels are made up of many silicon based photovoltaic cells (PV cells) which generate direct current (DC) electricity from sunlight. The PV cells are linked together within the solar panel and connected to adjacent panels using cables. Note: It is sunlight or irradiance, not heat, which produces electricity in photovoltaic cells. Solar panels, also known as solar modules, are generally connected together in ‘strings’ to create a what is known as a solar array. The amount of solar energy generated depends on several factors including the orientation and tilt angle of the solar panels, efficiency of the solar panel, plus any losses due to shading, dirt and even ambient temperature. There are many different solar panel manufacturers on the market, so it worth knowing which are the best solar panels and why Solar panels can generate energy during cloudy and overcast weather, but the amount of energy depends on the 'thickness' and height of the clouds, which determines how much light can pass through. The amount of light energy is known as solar irradiation and usually averaged over the whole day using the term Peak Sun Hours (PSH). The PSH or average daily sunlight hours depends mainly on the location and time of year.
2，Solar Inverter
Solar panels generate DC electricity which must be converted to alternating current (AC) electricity for use in our homes and businesses. This is primary the role of the solar inverter. In a ‘string’ inverter system, the solar panels are linked together in series, and the DC electricity is brought to the inverter which converts the DC power to AC power. In a micro inverter system, each panel has its own micro-inverter attached to the rear side of the panel. The panel still produces DC, but is converted to AC on the roof and is fed straight to the electrical switchboard.
There are also more advanced string inverter systems which use small power optimisers attached to back of each solar panel. Power optimisers are able to monitor and control each panel individually and ensure every panel is operating at maximum efficiency under all conditions.

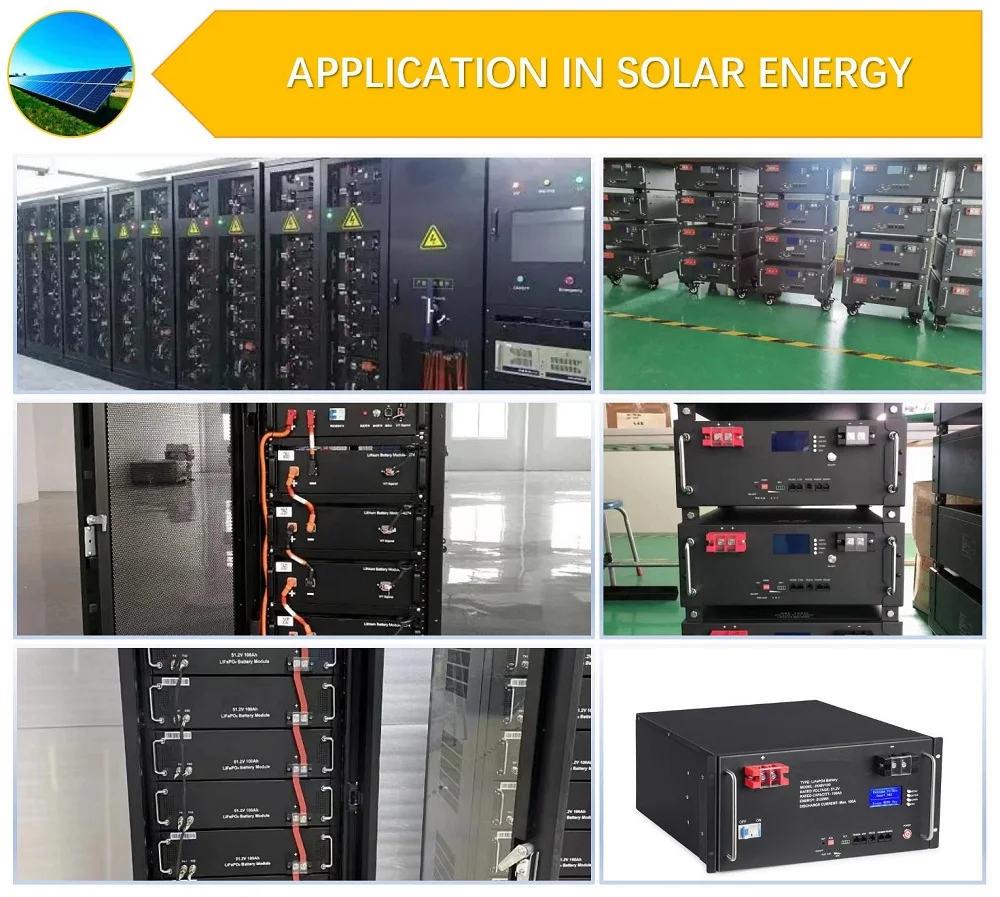

Batteries used for solar energy storage are available in two main types, lead-acid (AGM & Gel) and lithium-Ion. There are several other types available such as redox flow batteries and sodium-ion but we will focus on the most common two.
As you consider your solar battery options, you’ll want to compare each type of battery based on the capacity, depth of discharge (DoD), round trip efficiency, and battery life to find the best batteries for solar depending on your system’s requirements. Make sure to check the following:
· Capacity: Capacity is the total amount of electricity that a solar battery can store. This power is measured in kilowatt-hours (kWh).
· Depth of discharge (DoD): The depth of discharge (DoD) indicates the amount of battery capacity that’s used. The higher the DoD, the more usage you’ll get from the battery’s capacity. Your depth of discharge should generally be at least 40% or higher.
· Round-trip efficiency: Round-trip efficiency is the difference between the amount of energy used to charge it and the available amount of energy. A higher round-trip efficiency is generally more economical. You should look for a round-trip efficiency around 80%.
· Battery life & warranty: Since battery performance declines over time, a warranty guarantees good performance for years or cycles as well as ensuring the battery maintains a certain capacity.
